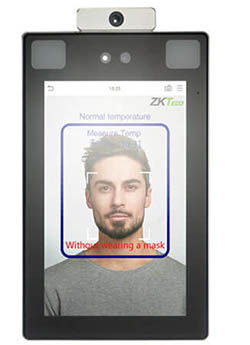

Highly advanced Face & Palm Verification Terminal featured with Body Temperature Detection functions and Masked-Facial Identification. The device is equipped with a smart facial recognition algorithm and latest computer vision technology for touchless user-identification supported . The series comes with remarkable storage capacity with clear-cut verification of both facial and palm recognition in less than a second.
The device promotes public safety and hygiene through contactless user-identification coupled with body temperature detection and masked-facial recognition. In addition, it is enhanced with powerful anti-spoofing technology against various types of fake photos and video attacks.
The device offers breakthrough performance in reducing the risk of infection and germs spreading in heavily crowded places such as hospitals, industrial areas, schools, IT parks, public transport facilities, etc.
Features:
- Touch-Free User Identification
- Ultra-Large Template Capacity
- New Height of Anti-Spoofing Algorithm
- Fast & Accurate Verification at Wide Range of Angles
- Smart Energy-Saving Technology
- High-Performance Facial Recognition Camera & Sensors
- Accurate Body Temperature Measurement
- Masked-Facial Identification
Techinical Specificatons:
| Faces | 30,000 (1:N) / 50,000 (Optional) |
| Palm | 5,000 (1:N) |
| Users / Cards | 50,000 |
| Transactions | 1,000,000 (Optional) / 2,000,000 |
| User Photos | 30,000 |
| Event Photos | 10,000 |
| * Proface X[TD] doesn't support card | |
| Compatibility | Security Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barcode / QR-code / ZKBioSecurity Software |
| Hardware | 900MHz Dual Core Customized AI CPU |
| 512MB RAM / 8G Flash | |
| 8" Hight light (400lux) IPS Touch LCD | |
| 125KHz EM Reader / 13.56MHz MF(Optional) | |
| 2MP WDR Low Light Camera | |
| Adjustable Light brightness LED | |
| Hi-Fi Voice | |
| High Sensitivity Microphone | |
| Distance Detection Sensor | |
| Reset Button and Tamper Switch | |
| Access Control Interface | Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor |
| Special Functions | IP68 & IK04 |
| 0.3s Hight Speed Facial Verification | |
| Liveness Detection | |
| HTTPS Communication Encryption (Optional) | |
| Event Snapshot | |
| Standard Functions |
Access Levels, Groups, Holidays, DST,Duress Mode (Password), Anti-Passback, |
| ntiepidemic | Mask detection |
|
Body temperature detection (ProFace X [TD] Only)
|
|
| Temperature Measurement Distance: | 30cm~50cm (1ft~1.64ft) |
| Temperature Measurement Accuracy: | ±0.3°C |
| Temperature Measurement Range: | 34°C~45°C |
| Communication | TCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232 |
| Additional Info | |
| Face Algorithm: | ZKLiveFace5.8 |
| Palm: | FAR ≤0.01%; FRR ≤1% |
| Working Temperature: | -30°C ~ 60°C,(-22°F ~ 140°F) |
| Working Humidity: | ≤93% |
| Storage Temperature: | -40°C ~ 65°C |
| Storage Humidity: | ≤93% |
| Net Weight: | 853g |
| Dimensions (H*L*D): | 227*143*26.1mm |
| Power | Operating Voltage: 12V DCCurrent Draw: <2,000mA |
